TBK 958B Laser Back Glass Removing Machine for Iphone with Laser Cutting Engraving Marking Printer and Frame Separator

Brand Name : TBK

Model Number : TBK-958B

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1set

Price : 1490

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 pcs per month

Delivery Time : 7 workdays

Packaging Details : 35X62X65 cm

Condition : New

Machinery Test Report : Provided

Warranty of core components : 1 Year

Warranty : 1 Year

After Warranty Service : Video technical support

Applicable Industries : Retail

Product name : TBK Mobile Phone Screen Protector Laser Cutting Engraving Machine

Function : ENGRAVE /REMOVE BACK GLASS

Item 1 : for iphone 8 8 plus x xs xr xsmax 12 12promax

Function 1 : no need to open whole phone

Compatible : 8 8 plus X XS XR XS Max 12 12Pro 11promax

Video outgoing-inspection : Provided

Marketing Type : New Product 2020

Core Components : Motor

After-sales Service Provided : Video technical support

Local Service Location : None

Showroom Location : None

Laser Power : 6w

Delivery : 2 days after payment

Item 2 : back glass removal

Function 2 : no damage to motherboard and battery

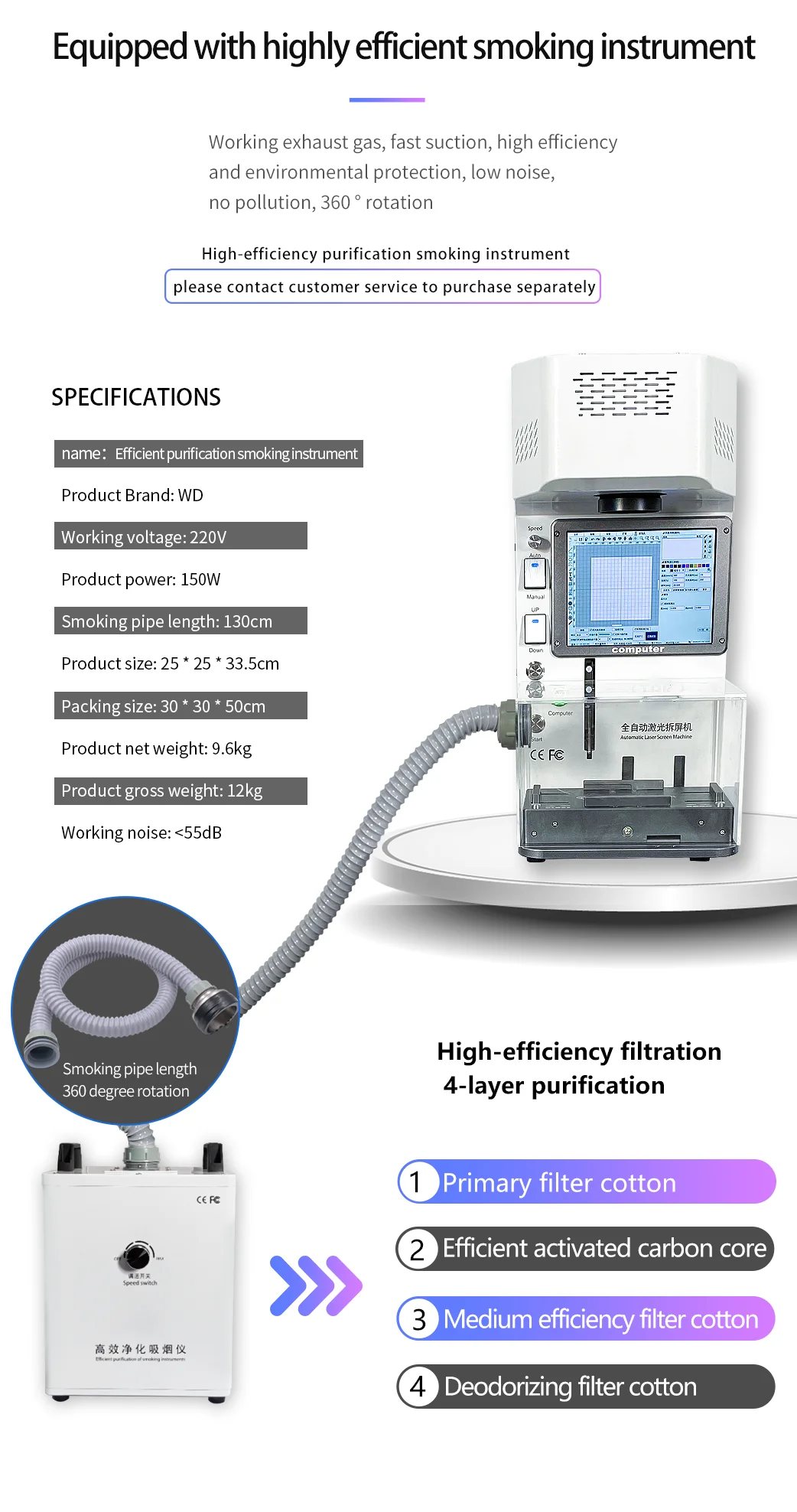

Function 4 : work along with fume cleaner

After Packing : 36KG

Contact Now

TBK 958B Laser Back Glass Removing Machine for Iphone with Laser Cutting Engraving Marking Printer and Frame Separator

Product Description

TBK 958B Laser Back Glass Removing Machine for Iphone with Laser Cutting Engraving Marking Printer and Frame Separator

2021 Laser Back Glass Removing Machine for iPhone 11 X XS Max 8 8+ Mini Engraving Machine

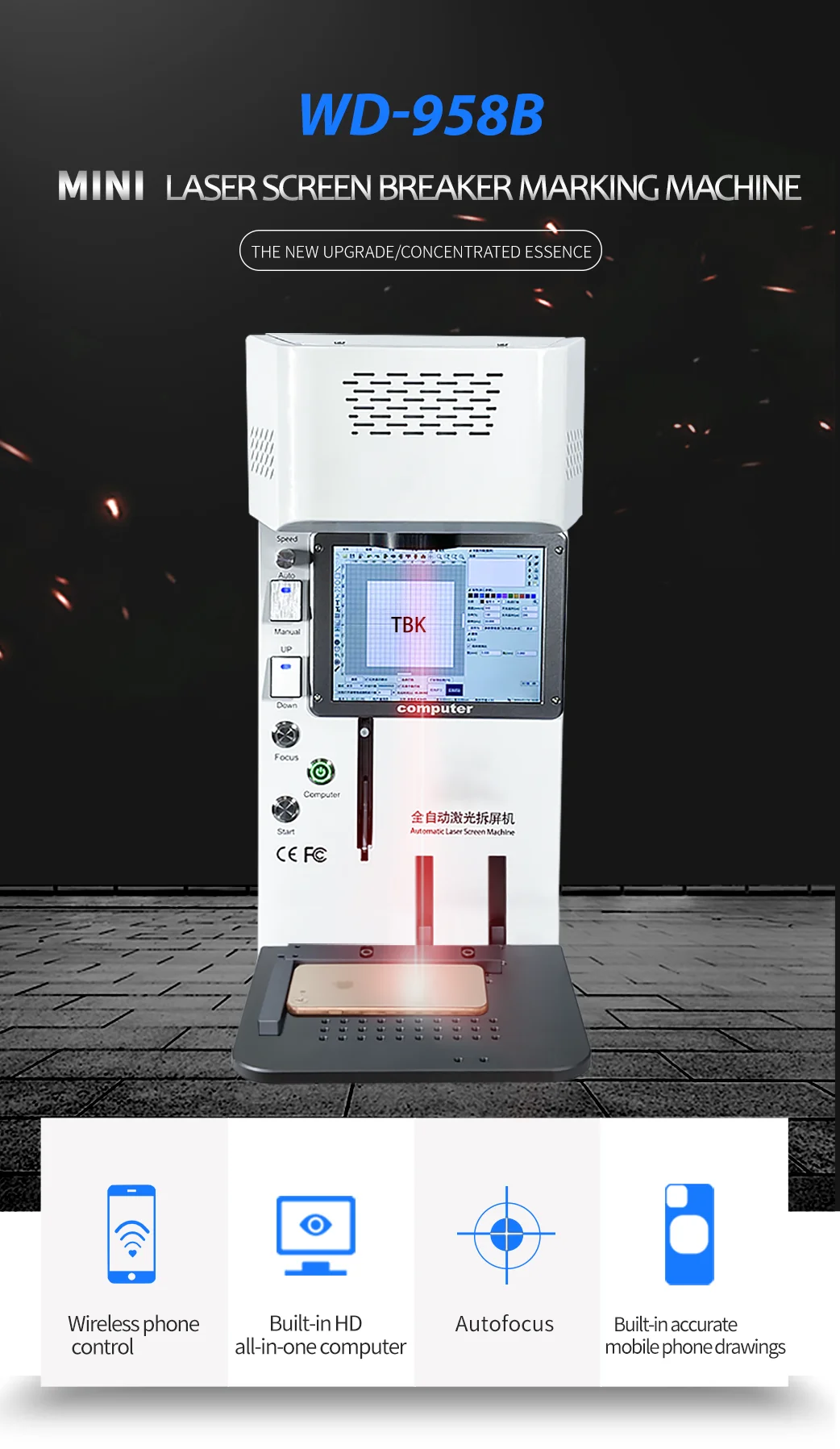

TBK958B Mini Laser Separator Machine

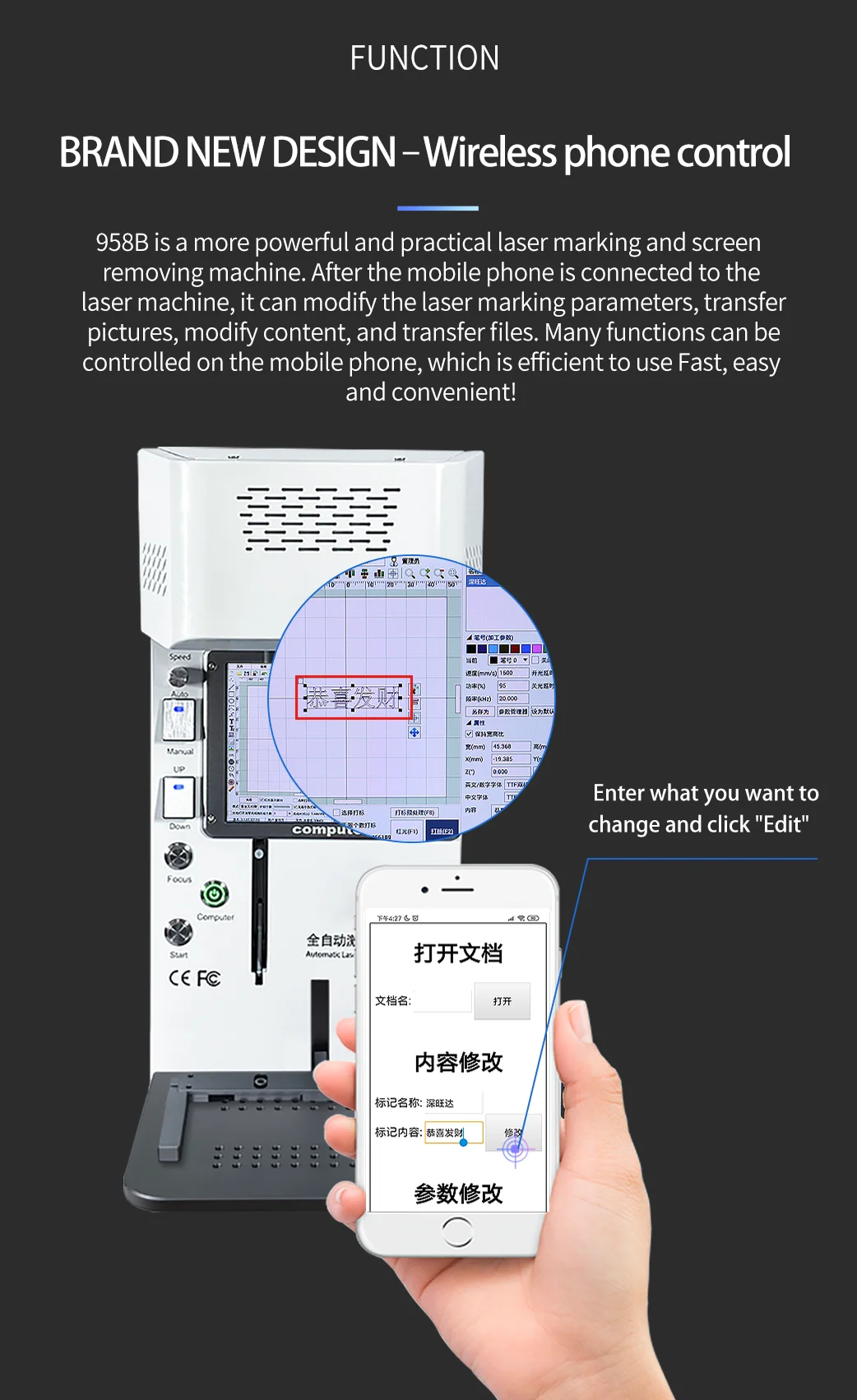

is a more powerful laser back glass removal machine, after being connected with mobile phone, various functions can be revised on phone directly, such as the laser marking parameters, transferring pictures, contents and files.
With this, the machine is more efficiency and easy to control.

1. Separate back cover and braket frames for all models , including 8 8 Plus X XS XR X Max 11 11 Pro max 12 12mini 12promax and also ok for other brand back cover separation .For Samsung Huawei Oppo Vivo Xiaomi LG etc

2. Built-in computer , software and all files are included , Automatic focus length, no need measurement

3. Laser on the phone directly , no damage for motherboard or battery , no need open whole phone

4. Can also engraving letters as per your request , support wifi which can upload photos from your phone to machine directly

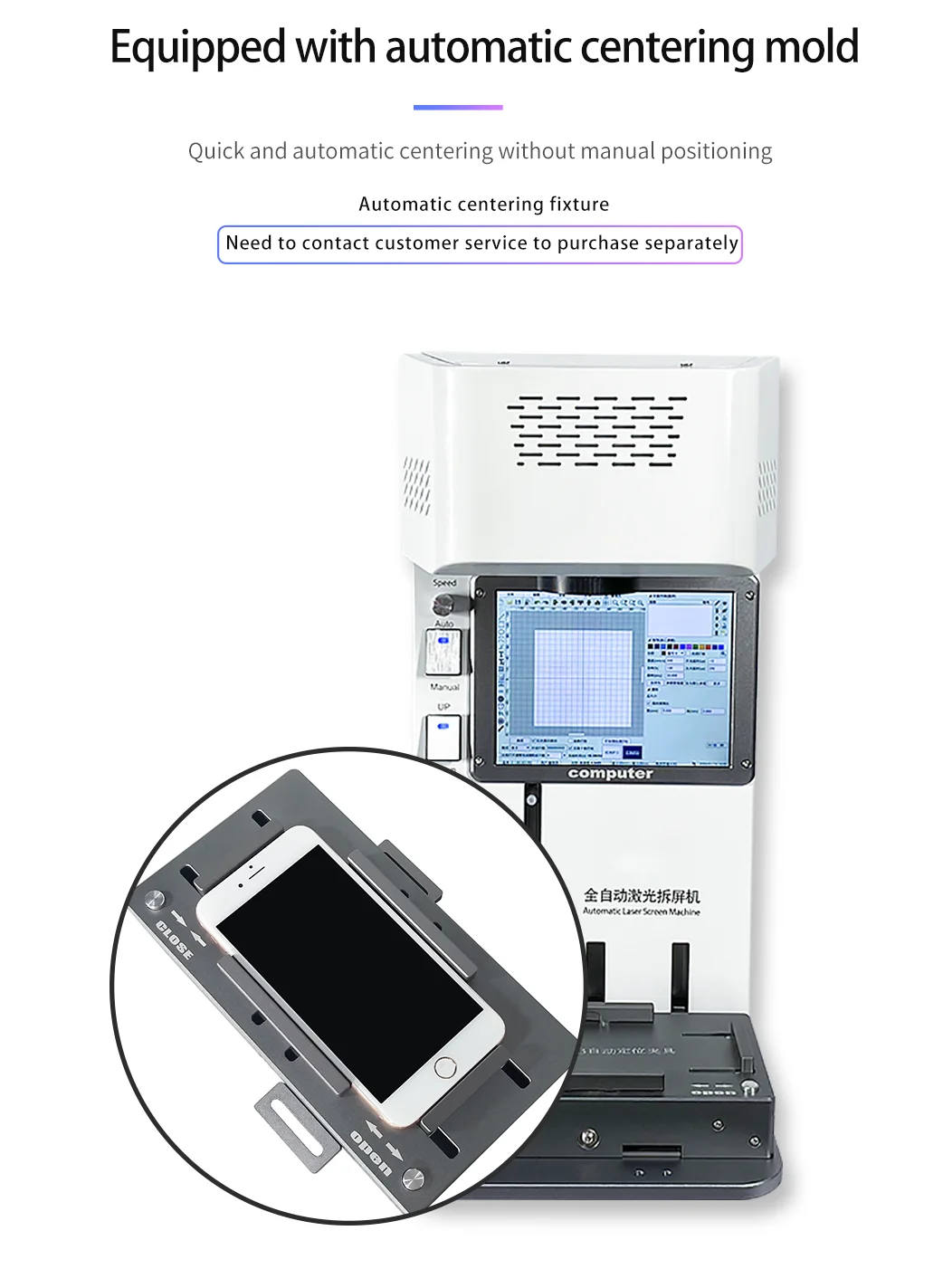

5, Automatic alignment fixture mode is included ,100% accurate , no need to adjust the location each time

6. We offer two years' warranty, technical support, and any technical issue for this machine. if any parts damage we will give free parts to fix

7. We also provide big hole back glass for iphone models , which does not need to take off the camera frame

The original colors as listed below :
8G Black White Red Gold
8 plus Black White Red Gold
X Black White
XS Black White Gold
XS Max Black White Gold
XR Black White Gold Yellow Blue Pink Red
11 Yellow , Green , Purple ,Red ,White ,Black
11Pro Black ,White ,Gold ,Dark Green
11Pro Max Black,White ,Gold,Dark Green
12mini : Black White Red Blue Green
12: Black White Red Blue Green
12pro: Space Gray Silver Gold Navy Blue
12promax : Space Gray Silver Gold Navy Blue

Feature:

1.Hundreds of mobiles back case & frame data support and keep updating.

2.Can filber laser marking pictures on metal or mobile back case.

3.Printing LOGO on your goods.

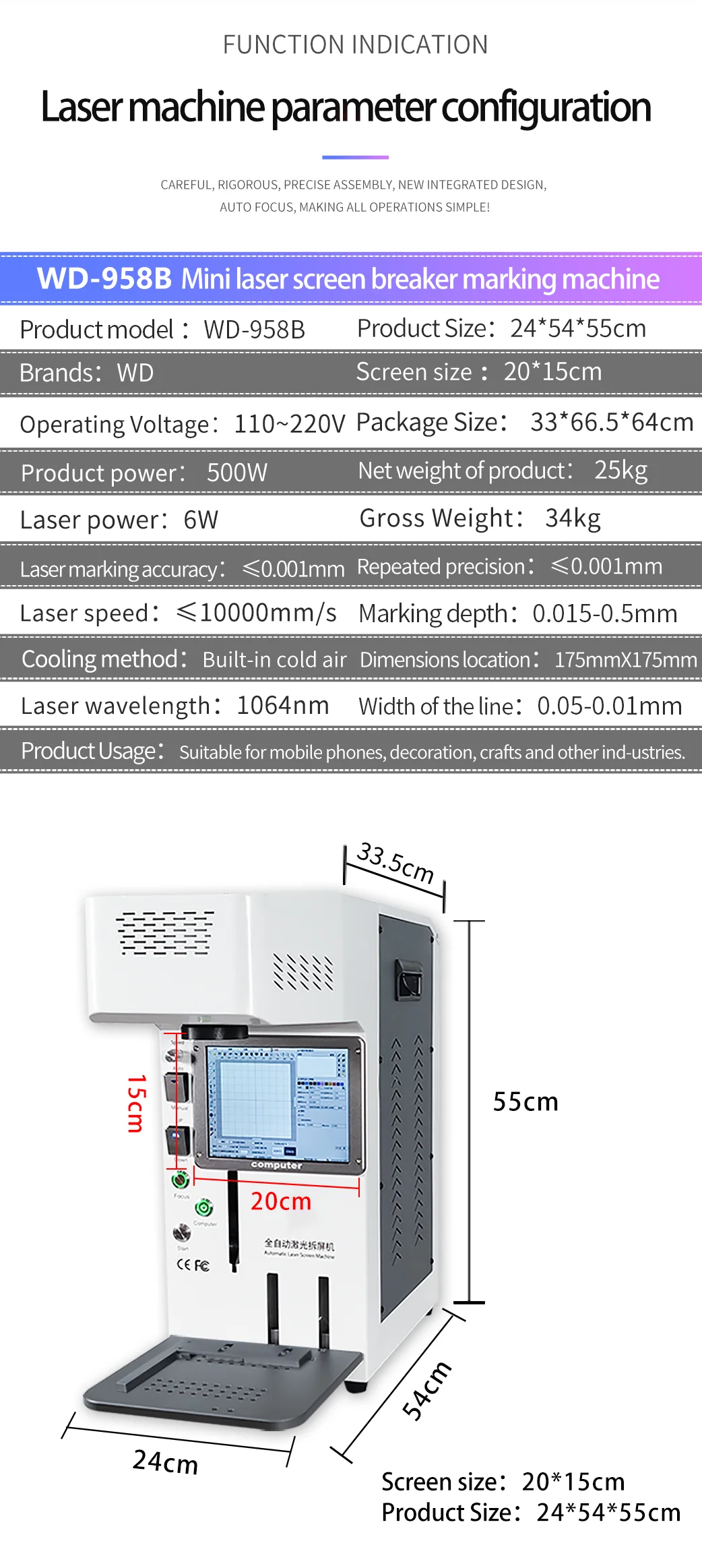

Model		tbk-958B
Power		220V/110V
Machine Size		290570600mm
After Packing		36KG
Description		Machine is newest model,it can use for Mobile phone Back Glass Remover,Laser engraving and marking. built-in computer and Precise drawing . Selected high speed galvanometer. Sensor autofocus. One-button start-up and operation simple

How to use it.

1. Plug in the power cord and turn on the power switch;
2. Remove the lens cap of the high-speed galvo mirror;
3. Turn on the computer switch (Computer key);
4. Call up the corresponding drawings;
5. Place the mobile phone along the fixed fixture;

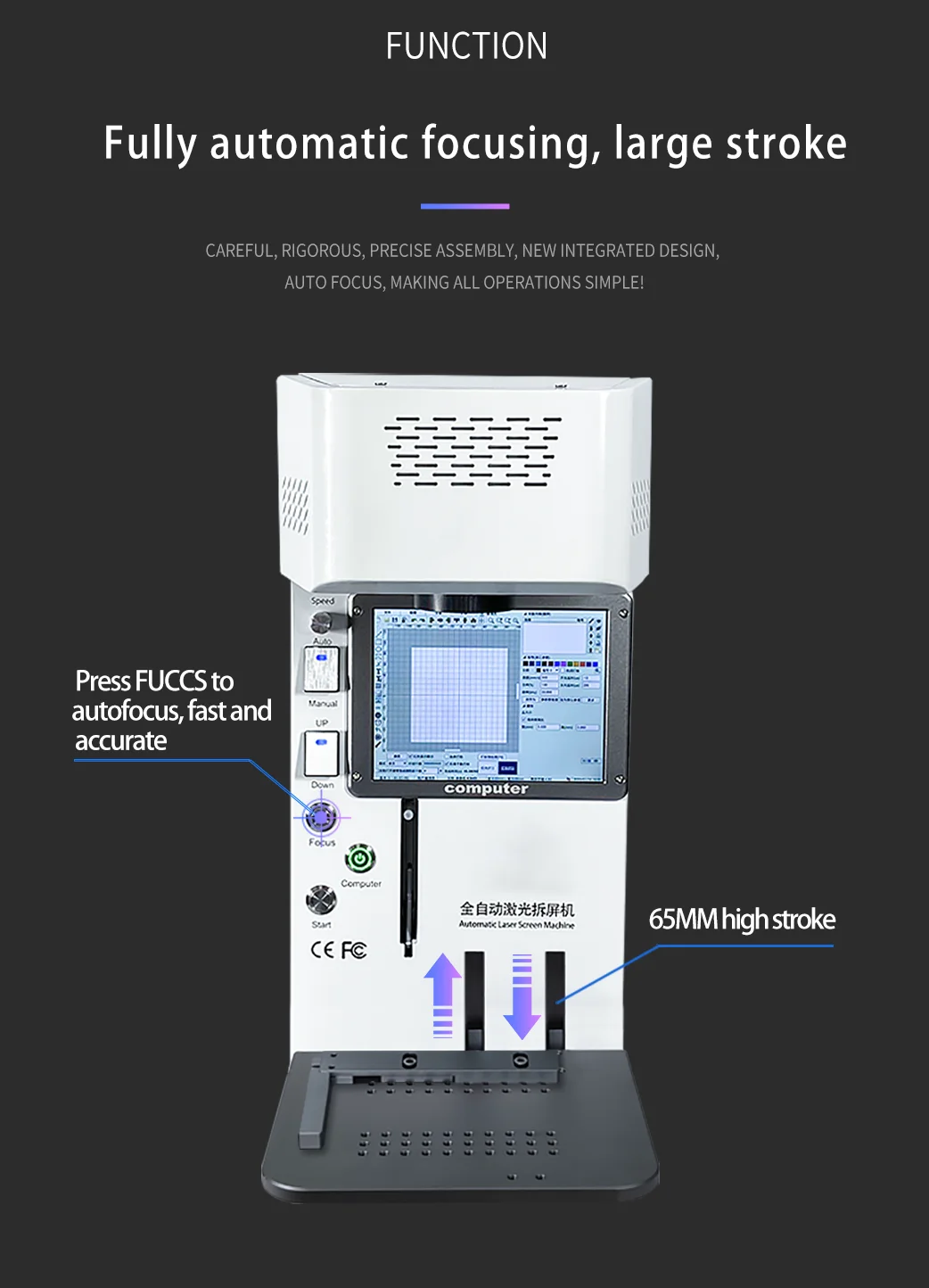

6. Press the Focus button to automatically adjust the focal length;
7. Turn on the red light indicator, aim at the red light, and adjust the parameters;
8. Start marking button to start marking;
9. Remove the mobile phone after the marking is finished, and you can disassemble the machine.

Note: There is no matching mold set for this product. If you need a mold set, please contact the shop customer service and purchase it separately.
